Factory made hot-sale China Casement Sliding Tinted Glass Window with Customized Design Double Tempered Glazing Customzied Color and Hung Sliding Fixed Types and Thermal Break Profile
We not only will try our greatest to offer you outstanding products and services to every single buyer, but also are ready to receive any suggestion offered by our buyers for Factory made hot-sale China Casement Sliding Tinted Glass Window with Customized Design Double Tempered Glazing Customzied Color and Hung Sliding Fixed Types and Thermal Break Profile, With a wide range, top quality, sensible charges and stylish designs,Our items are widely recognized and dependable by users and can fulfill continuously changing economic and social needs.
We not only will try our greatest to offer you outstanding products and services to every single buyer, but also are ready to receive any suggestion offered by our buyers for Aluminum Window, China Window, Satisfaction and good credit to every customer is our priority. We focus on every detail of order processing for customers till they have received safe and sound products and solutions with good logistics service and economical cost. Depending on this, our merchandise are sold very well in the countries in Africa, the Mid-East and Southeast Asia.
Australia Standard Certified Aluminum Glass Windows and Curtain Walls

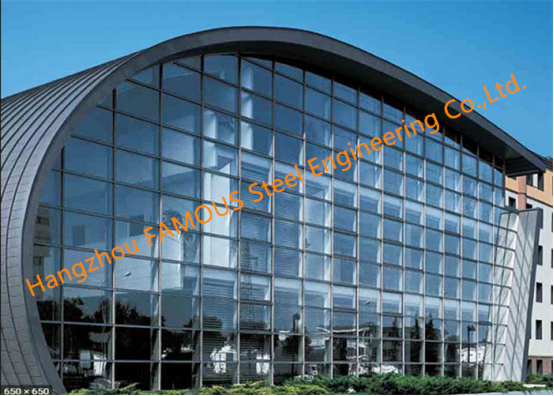

The glass curtain wall of the modern high-rise building uses hollow glass composed of mirror glass and ordinary glass, and the inter-layer is filled with dry air or inert gas. Insulating glass is divided into two layers and three layers. The two-layer insulating glass consists of two layers of glass and a sealed frame to form a sandwich space; the three-layer glass consists of three layers of glass to form two inter-layer spaces. Insulating glass has the advantages of sound insulation, heat insulation, frost resistance, moisture resistance, and strong wind pressure resistance. According to measurements, when the outdoor temperature is -10°C, the temperature in front of the single-layer glass window is -2°C, while the indoor temperature using three-layer insulating glass is 13° C. In the hot summer, double-layer insulating glass can block 90% of the solar radiation heat. Sunlight can still pass through the glass curtain wall, but most of the sun does not feel hot. The room with hollow glass curtain wall can be warm in winter and cool in summer, greatly improving the living environment.
|Product Name||Aluminum Framed Glazed Metal Curtain Wall|
|type||visible/invisible curtain wall;unitized curtain wall;spider curtain wall|
|Glass composition||Float glass, laminated glass, tempered glass,low-E glass,tinted glass,Low-E glass etc.|
|Thickness||1)Aluminum Strip Width:6A,9A,12A,15A,17A,19A
2)Glass Thickness:3mm -19mm
|size||As customer’s requirements. Max size: 3000mm x 8000mm Min size:200mmx200mm.|
|Color||Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue|
|Shape||1,semi-circle 2,rectangle 3,arch 4,special shape|
|Filled Gas||1,air 2,vacuum 3,argon, etc|
|Application||(1)Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements.
(2)For use in airport control towers, train windows and other environments that need regulated Airports and buildings near highways and railways, that require sound insulation properties
|ACC||Full set of included. gasket,silicon,sealant rubber,screws.|
|Coating||Spray Painting; Galvanization; Powder Coated|
|Steel code||Q235-B; Q345-B; Stainless steel|
Frame-supported glass curtain wall is a glass curtain wall supported by a metal frame around the glass panel, mainly including:
Open frame glass curtain wall:
Open frame glass curtain wall is a glass curtain wall with metal frame members exposed on the outer surface. It special
The gold profile is the frame, and the glass panel is fully embedded in the groove of the profile. Its characteristic is that the aluminum alloy profile itself has the dual function of skeleton structure and fixed glass.
Open frame glass curtain wall is the most traditional form, the most widely used and reliable performance. Compared with hidden frame glass curtain wall, it is easier to meet the requirements of construction technology level.
Hidden frame glass curtain wall:
The metal frame of the hidden frame glass curtain wall is hidden behind the glass, and the metal frame cannot be seen outdoors. Hidden frame glass curtain wall can be divided into two kinds of full hidden frame glass curtain wall and semi-hidden frame glass curtain wall. The structural characteristics of the hidden frame glass curtain wall are: the glass is outside the aluminum frame, and the glass is bonded to the aluminum frame with silicone structural sealant. The load of the curtain wall mainly depends on the sealant.
