America Standard AWS D1.1D1.5 Fabricated Steel Structures Modular Bridges Truss Girder
America Standard AWS D1.1D1.5 Fabricated Steel Structures Modular Bridges Truss Girder
Our factory owns two large production base and the capacity of each one is around 30000-40000tons per year. there are many domestic/overseas projects under operation. Except ISO, we also have the certification of AWS D1.1, AWS D1.5 Bridge field specialized Certification, related tests/inspections have been done .

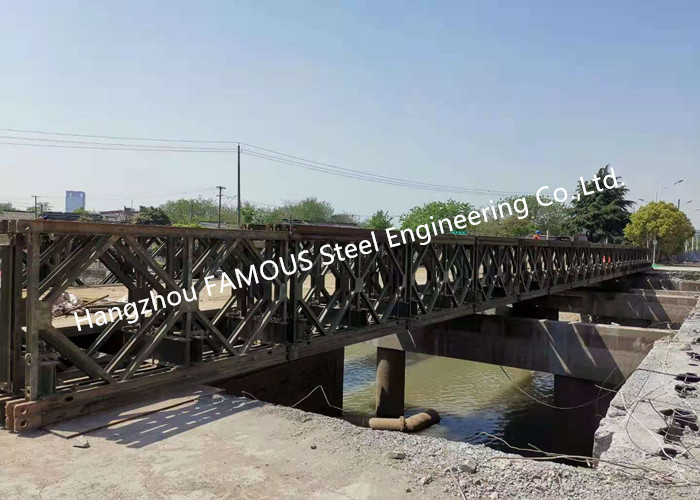

“321″steel bailey bridge is a kind of rapid assembly bridge produced and researched based on the original British bailey truss bridge and combinated with China’s national conditions. “321″type Bailey bridge is the most widely used aseembled bridge,it be used in national defense, transportation engineering, municipal water conservancy projects.”321″ type Bailey bridge feaures simple structure,convenient transportation,fast erection,large load, good interchangeability and strong adaptability.
*The bridge deck has a net width of 4.2M
*The maximum net width of 7.35M.
*The combined span is 9-69m
Jiangsu Jiuzhou Bridge Engineering Co.,Ltd.(shortly called as JBEC) lies in Huashan Village, Yaoqiao Town, New District of beautiful city– Zhenjiang, Jiangsu Province. It covers an area of 80,000 square meters. The traffic is very convenient. It is 30 kilometers away from Changzhou Airport and five kilometers from Huning Motorway Entrance& Exit. By Train it is only 1 hour away from Shanghai, the largest city of China.
Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.
Most importantly, not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence. Warmly welcome all friends and clients from International market to visit us.
| Product Name | America Standard AWS D1.1D1.5 Fabricated Steel Structures Modular Bridges Truss Girder |
| Width | 3.15-7 meters |
| Maximum span | 64meter single span and 200meter multi span |
| Bridge deck | Anti-slip steel decking floor,checkered steel plate etc |
| Steel grade | Q345B/Q355 (equivalent to ASTM A572) or custom required |
| Loading capacity | 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20/HL-93 |
| Corrosion | Original coat paintIing or Hot dip galvanized |
| Advantages | Cost-effective and technical full analysis and supports |
| Applications | Road Bridges· Pedestrian Bridges· Railway Bridges
· Steel Truss Bridge · Beam Bridges · Steel Bailey bridge · Structural Steel Box Bridge Highway Bridges · Composite Beam Bridge · Cable-Stayed Bridge · Floating Bridge etc. |
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
Warmly welcome all friends and clients from International market to visit us!
